Description

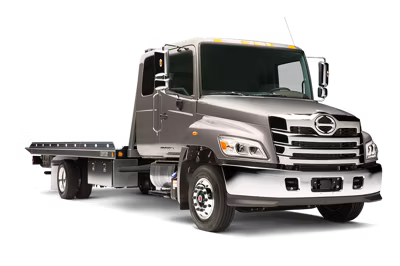

Hino L6 (25,950 GVW)
Specifications
Manufacturer
Hino
Model
L6 (25,950 GVW)
Year
2026
Category
Trucks
Subcategory
L Series
Fuel System
Bosch Common rail, direct injection
Transmission
Allison six speed automatic with neutral at stop (NAS)
Front axle
Meritor MFS series reverse Elliot, “I” beam (oil lubricated)
Rear axle
Meritor, full floating, single reduction, single-speed, hypoid gearing
Batteries
STD Two, parallel connection, 1200 CCA (GR 31) (OPT Multiple two battery choices, OPT Multiple three battery choices)
Alternator
STD 12V, 130A, Delco (brush) (OPT 12V, 135A (brushless), OPT 160A (brush), OPT 200A (brush))
Starter
Delco Remy 31MT 12V, 4.8kw
Fuel Tank
STD 50 gallon (OPT Dual 50 gal, OPT Single 70 gal, OPT Single 90 gal)
DEF tank
7.4 gallon
Brakes
STD Hydraulic disc (OPT Air S-Cam drum)
Front axle/susp lbs
STD 8,000 (OPT 10,000/12,000)
Rear susp type
STD Multi leaf spring (OPT Hendrickson Comfort Air with electric dump valves)
Rear axle/susp lbs
STD 17,500/19,000 (OPT 19,000/19,000)
Rear axle ratio
STD- 5.29 (23k GVWR), STD 5.57 (26k GVWR), STD 4.11 (25.5k GVWR)
Wheel size
STD 22.5” (OPT 19.5”)
Wheel type
STD Powder coated white (OPT Aluminum Accuride or Alcoa)
Frame yield strength
80K PSI (1.0 M RBM)
Engine model
Cummins B6.7L (EPA 2021 certified)
Type
Diesel 4 cycle, 6 cylinder in-line, water-cooled, parent bore cylinder
Turbocharger
Variable Geometry Turbocharger w/integrated engine braking
Bore & Stroke
4.21 in x 4.88 in
Max output @ 2,500 rpm
240-260hp
Max torque @ 1,500 rpm
560-660 lb-ft
Emissions system
EGR with Single Module Aftertreatment
Engine HP
Cummins B6.7L 240hp (Cummins B6.7L 260hp)
Transmission model
STD 2200HS, STD 2200RDS (OPT 2500HS, OPT 2500RDS)
Driveline
Dana Spicer HD
